| Brand Name: | TUWE |
| Model Number: | TW-3001 |
| MOQ: | 1000kg |
| Price: | USD580-1090/TON |
| Packaging Details: | 25kg/500kg-1000kg/per bag |
| Payment Terms: | T/T |
The fireproof cable sheath material uses flame retardant materials, which can effectively avoid the release of toxic gases and smoke when burning in a fire accident.
The material has excellent high temperature resistance and can be used for a long time at working temperatures as high as 105 ° C,
and can maintain good performance in an oil solvent environment.
Good electrical insulation performance. Due to the use of high-quality plasticizers and stabilizers,
its electrical insulation performance is very excellent. In addition, its electrical insulation properties can be further improved by adding special performance additives or modifiers.
The improved formulation gives it high mechanical strength and is suitable for applications in a variety of complex environments.
The material has excellent aging resistance and can be used for a long time in harsh environments without being easily degraded. Environmentally friendly materials are used and comply with the ROHS Directive to ensure product safety and environmental protection.
| NO. | Parameter | Results of Testing | Test Method | |
| 1 | Color | ≤Δ0.8 | ||
| 2 | Granule size for square particles | 3 mm | ||
| 3 | Foreign matter number, size, not more than: | a) from 0.2 to 0.5 mm | ≤12pcs. | |
| b) above 0.5 mm | none | |||
| 4 | Density | 1.3-1.6cm3 | ASTM D792 | |
| 5 | Hardness at (20 ±2) ˚C | SHORE A:94A | ASTM D792 | |
| 6 | Granule porosity | No pores on the granule section visible at 10x magnification | ||
| 7 | Fluidity | No grain. Smooth surface | ||
| 8 | Thermal stability test |
200±2℃ ≥80min |
GB/T8815-2008 | |
| 9 | Specific volumetric electrical resistance,at (20 ±2) ˚C | 4.5X1013Ω.M | ||
| 10 | Dielectric strength | 243 | ||
| 11 | Tensile strength, not less than | 14.3 N/mm2 |
UL62/2556 GBT8815-2008 |
|
| 12 | Tensile stretch, not less than | 272% | ||
| 13 |
Loss in weight at 160 ˚C for 6 hours, not more than |
1.5% | ||
| 14 |
Flammability according to oxygen index, not less than |
23% | ||
| 15 |
Low temperature embrittlement -40±2℃ 4h |
0/30 | ||
| 16 | Congo Red | 95min | ||
| 17 | Water absorption, not more than | 0.2 | ||

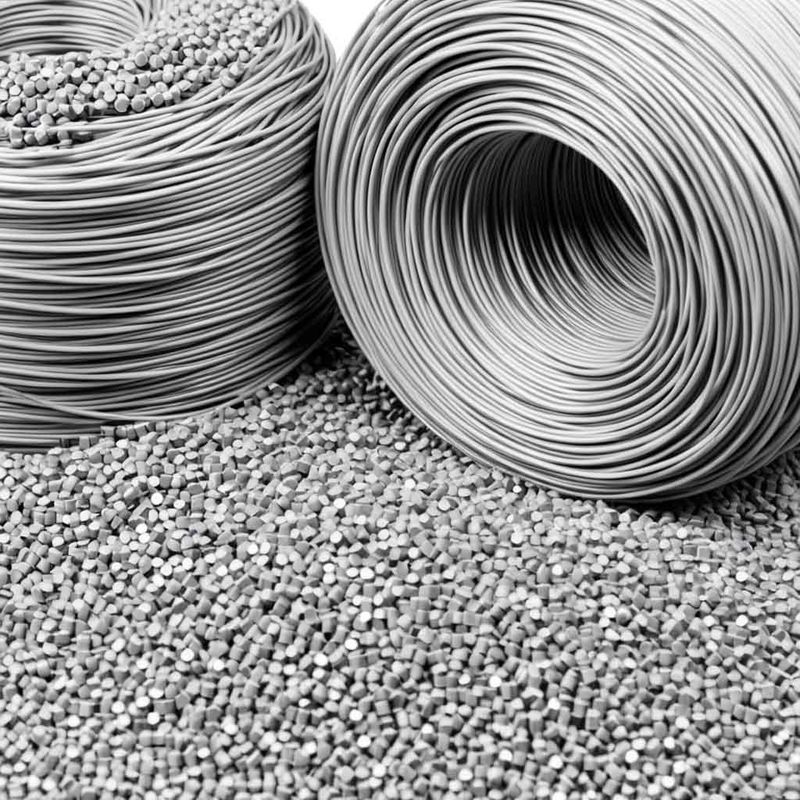

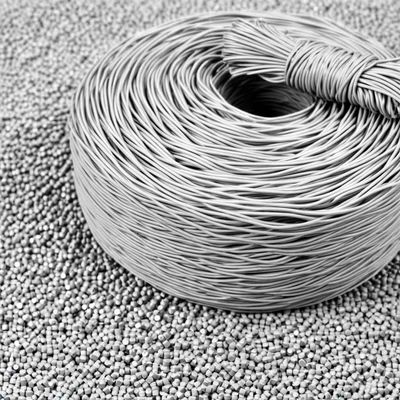

Suitable for wire and cable
Our PVC cable compounds are widely used in fire cables, indoor and outdoor network cable jackets and insulation layers, etc. It can meet the requirements of various standards such as GB, UL, and VDA. The flame retardant rating can meet IEC, UL and other requirements, such as Class A bundled combustion, CMR, CMP combustion, etc., and the oxygen index can reach up to 48%. Oil-resistant and low-temperature resistant materials can be customized.
Heat resistant 105℃PVC wire and cable insulation materials are widely used in the connection of power and signaling devices within electrical electronics,
instruments and mechanical equipment, as well as the connection lines within household appliances.
Its main uses include but are not limited to the insulation layer of low voltage (≤ 1KV) and medium and high voltage (6~ 10KV) cables.
Usage: Mix evenly with raw materials for production.
Packaging: 25kg/bag or 1000kg/bag, polyethylene black, milky white printed bags or paper-plastic composite bags (can be customized according to customer needs)
Storage: Store in a cool and dry place, avoid exposure to sunlight and rain.
Samples: We provide non-customized products within 5kg for free, and you need to pay the shipping fee.
Transportation:support express delivery, sea freight, full container load, LCL...
Taking the Ф65 extruder as an example, the ideal melt temperature range of this product is 135～175℃, and the heating zone should be 135～175℃. The die temperature should be carefully checked before starting the machine to avoid eccentricity and uneven bonding between the insulation layer and the sheath layer caused by over-plasticization or poor plasticization.
Follow good industrial practices to avoid environmental pollution, fire and dust prevention.
For more information, please see MSDS of PVC Compounds.
|
|
