| Brand Name: | Tuwe |
| Model Number: | TW5006 |
| MOQ: | 1000kg |
| Price: | 3.5-9$/kg |
| Packaging Details: | 25kg/500kg-1000kg/per bag |
| Payment Terms: | T/T |

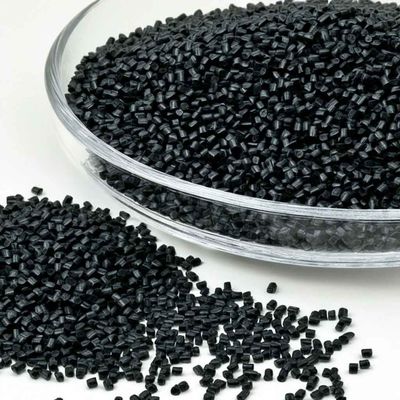

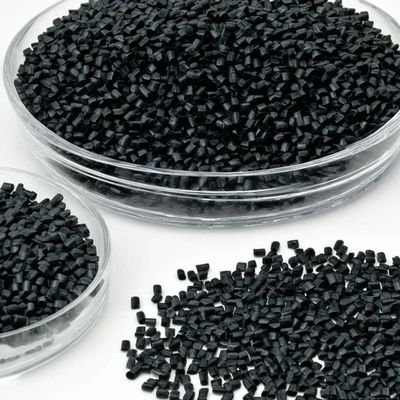

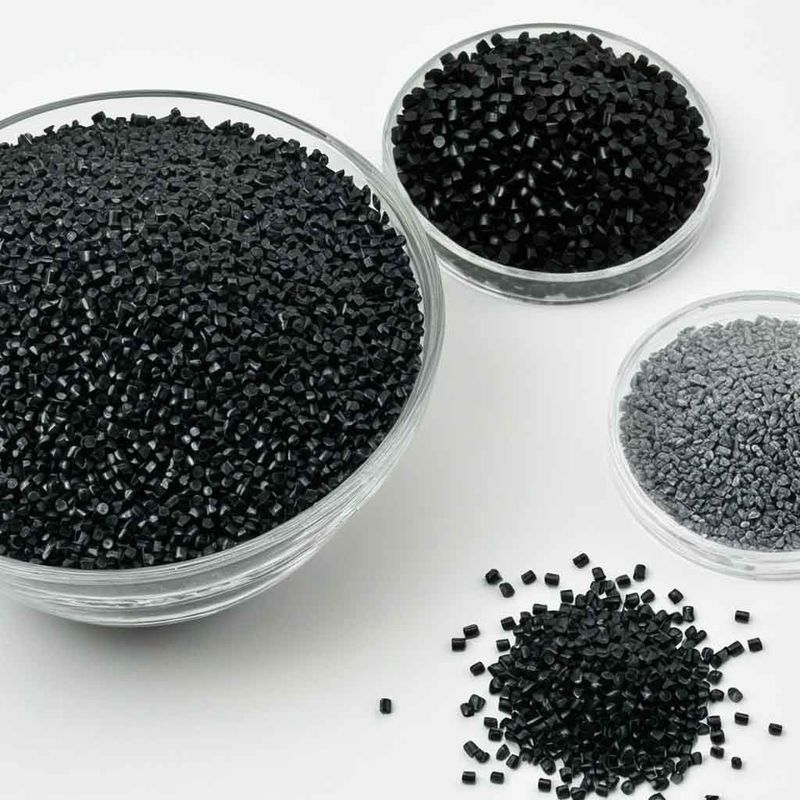

LCP Antistatic Masterbatch Carbon Fiber CF30% Superconducting Electric LCP Masterbatch LCP Conductive Electromagnetic Shielding Masterbatch High Rigidity, High Temperature Resistance, Anti-Static LCP
LCP conductive masterbatch is a high-performance conductive material specially designed to meet the requirements of modern electronic equipment for electromagnetic interference (EMI) shielding. By adding conductive fillers, such as carbon-based nanomaterials, to the LCP substrate, the product achieves excellent electrical conductivity and electromagnetic shielding effect, while maintaining the mechanical properties and thermal stability of the LCP material itself.
| Property Category | Test Standard | SI Units | Typical Values |
|---|---|---|---|
| Mechanical Properties | |||
| Density | ISO1183-1 | g/cm³ | 1.62 |
| Tensile Modulus | ISO1527 | MPa | 13000 |
| Tensile Stress (Break) | ISO1527 | MPa | 130 |
| Flexural Modulus | ISO178 | MPa | 11000 |
| Izod Impact Strength (Notched) | ISO180 | J/m² | 40 |
| Thermal Properties | |||
| Heat Deflection Temp | ISO527-2 | °C | 280 |
| Flame Retardancy | UL94 | % | V0 |
| Other Properties | |||
| Shrinkage | ISO294-4 | % | 0.1-0.8 |
| Processing Properties | |||
| Processing Temp.Range | °C | 300-350 | |
| Mold Temp.Range | °C | 80-120 | |
| Drying Temp | °C | 150-170 | |
| Drying Time | h | 4-6 |
Product Packaging:
The Conductive Compounds product comes in a sturdy plastic container with a tight-fitting lid to ensure product freshness and prevent spills. The container is labeled with the product name, description, and usage instructions for easy identification and use.
Shipping:
The Conductive Compounds product is shipped in a secure package to prevent damage during transport. The package is labeled with the recipient's information, including name and address, and is sent via a trusted courier service. Delivery time may vary depending on the recipient's location.
|
|
