| Brand Name: | Tuwe |
| Model Number: | TW—D5013 |
| MOQ: | 1000kg |
| Price: | 5-10$/kg |
| Packaging Details: | 25kg/500kg-1000kg/per bag |
| Payment Terms: | T/T |

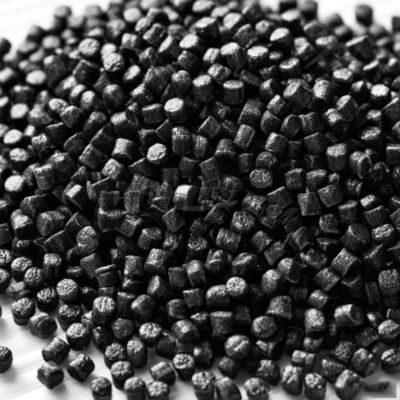

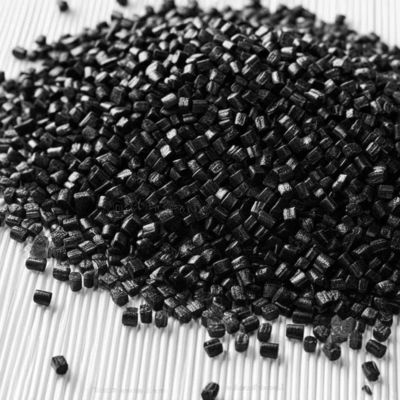

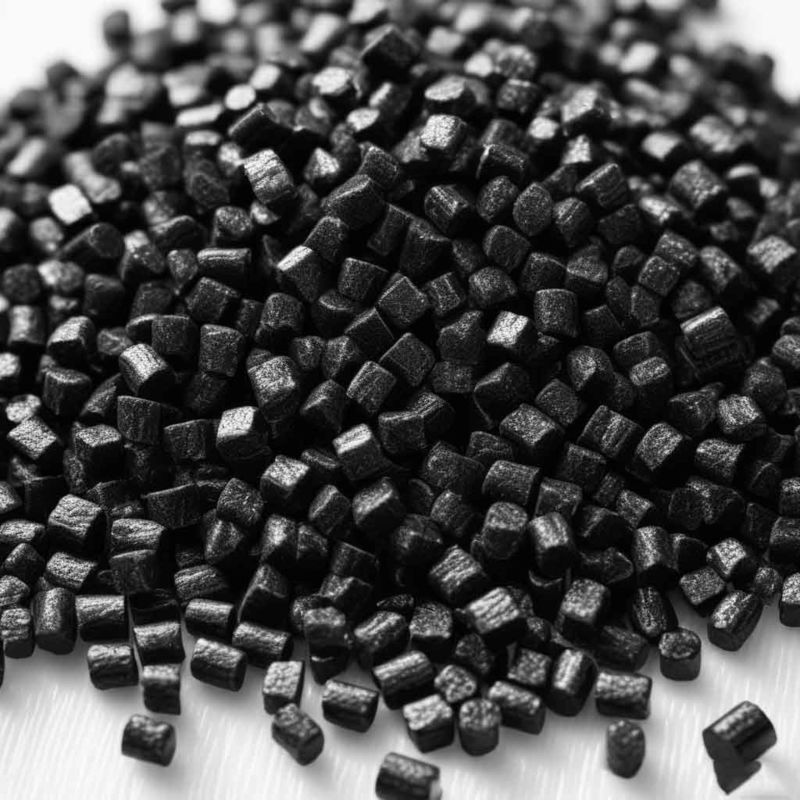

PPS Conductive Carbon Fiber Pellets For Static Dissipation Conductive Carbon Fiber PPS6- 9th Power High Temperature Resistant Modified PPS Carbon Fiber Reinforced PPS Anti-Static Plastic PPS
PPS conductive masterbatch is a high-performance polyphenylene sulfide (PPS)-based conductive material. Conductive fillers such as carbon black, carbon fiber, etc. are uniformly dispersed in the PPS matrix through fine processes to form a stable conductive network. This product not only retains the original excellent mechanical properties and chemical resistance of PPS, but also gives the material good electrical and antistatic properties, making it suitable for a variety of highly demanding application fields.
| Property | Test Standard ISO | S.I Units | Typical Values |
|---|---|---|---|
| Tensile Modulus | ISO1527 | MPa | 14700 |
| Tensile Stress (Break) | ISO1527 | MPa | 200 |
| Tensile Strain (Break) | ISO1527-2 | % | 1.9 |
| Flexural Modulus | ISO178 | MPa | 15500 |
| Flexural Stress | ISO178 | MPa | 305 |
| Notched Izod Impact Strength | ISO180 | 23°C J/m² | 12 |
| Property | Test Standard ISO | S.I Units | Typical Values |
|---|---|---|---|
| Heat Distortion Temp | ISO527-2 | °C | 270 |
| Flame Retardancy | UL94 | % | V0 |
| Property | Test Standard ISO | S.I Units | Typical Values |
|---|---|---|---|
| Mold Shrinkage | ISO294-4 | % | 0.3-0.6 |
| Processing Data | Typical Value | Units | Remarks |
|---|---|---|---|
| Processing Temp Range | 290-340 | °C | —— |
| Mold Temp. Range | 140-160 | °C | —— |
| Drying Temperature | 130-140 | °C | —— |
| Drying Time | 3-4 | H | —— |
Mainly used in: electronic and electrical, aerospace components, machining, automotive industry, medical devices, hairdressing products, food industry, and other applications such as miniature relay housings, circuit boards, coils, flexible circuits, mirrors, high-precision dense optical fiber components, aircraft nose components, handles, trays, fixtures for surgical instruments, prosthetics, medical lamp mirrors, and dental tools, etc.
Product Packaging:
The Conductive Compounds product will be packaged in a sturdy, corrugated box to ensure it arrives safely to your location. The product will be sealed in a plastic bag to protect it from any moisture or humidity during transit. The package will include a label with the product name, quantity, and any handling instructions.
Shipping:
We offer several shipping options to accommodate your needs. We typically ship via UPS or FedEx, and our standard shipping time is 3-5 business days. If you require expedited shipping, please contact us and we can arrange for faster delivery. Please note that shipping costs will vary depending on the destination and shipping method selected.
|
|
