PA Nylon Plastic Pellets Conductive Masterbatch 10E5-0E9 Customized For Injection Molding

Brand Name:	Tuwe
Model Number:	TW5006
MOQ:	1000kg
Price:	1.5-8$/kg
Packaging Details:	25kg/500kg-1000kg/per bag
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO,ROHS, REACH

Density:

1.24g/cm3

Bending Modulus:

1725 Mpa

Style:

Conductive

Shape:

Pellet

Function:

Prevents Static Charge

Supply Ability:

500 tons per month

Highlight:

PA nylon plastic pellets

nylon plastic pellets Masterbatch

PA nylon pellets for injection molding

Product Description

PA Nylon Conductive Masterbatch Customized As Needed Carbon Fiber Antistatic Masterbatch Resistivity 10E5 - 10E9 Masterbatch

PA Nylon Conductive Masterbatch Product Description:

PA carbon fiber conductive masterbatch is a high-performance modified nylon material. It is prepared by using PA6 or PA66 as a substrate, adding conductive materials such as carbon fiber, and through advanced mixing processes. This product has excellent electrical conductivity, antistatic effect and good mechanical properties, and is widely used in electronics, automobiles, industrial equipment and other fields.

Features:

Product Name: Conductive Compounds
excellent conductivity,The surface resistivity range is 10^3^-10^9^Ω and can be adjusted according to customer needs.
High strength and wear resistance
The addition of carbon fiber significantly improves the mechanical strength and wear resistance of the material and extends the service life of the product.
good processability
It is suitable for various processing processes such as injection molding and extrusion, and the processing temperature range is 240-290℃.
Environmental protection and stability
The product meets environmental protection requirements and has good weather resistance, corrosion resistance and size stability.
Appearance and color

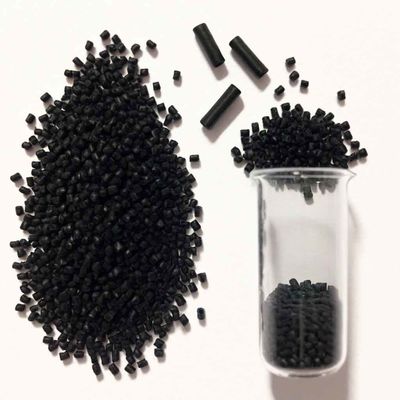

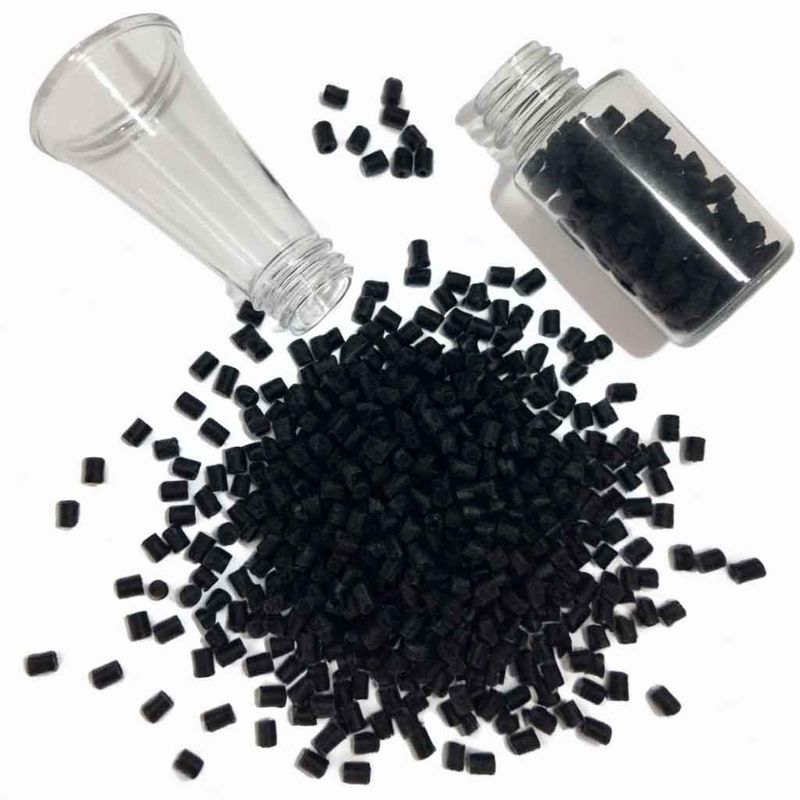

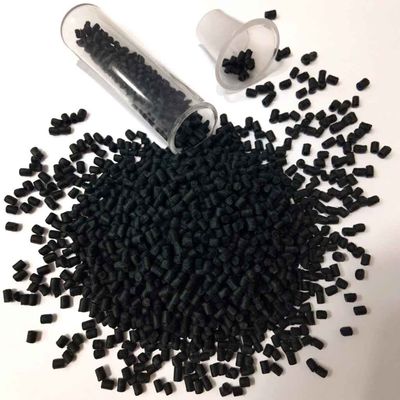

The product is made of black particles, no floating fibers, smooth surface, suitable for a variety of application scenarios

PA Nylon Conductive Masterbatch Technical Parameters:

Product Parameters for PA Carbon Fiber Conductive Masterbatch

Parameter	Unit	Typical Value	Notes
Appearance	——	Black Pellets	——
Base Material	——	PA6/PA66	——
Carbon Fiber Content	%	15-30	Can be customized
Surface Resistivity	Ω	10^3^-10^9^	Measured according to ASTM D257
Processing Temperature	℃	240-290	Recommended for optimal performance
Drying Temperature	℃	90℃, 4-6 hours	To ensure moisture removal
Density	g/cm³	1.2-1.4	——
Mechanical Properties	——	High Strength, High Modulus	Enhanced by carbon fiber
Water Absorption	%	≤0.5	Low moisture absorption ensures stability
Electrical Stability	——	Stable Conductivity in Humid Environments	Carbon fiber ensures long-term stability
Melt Flow Rate (MFR)	g/10min	2.8-5	Measured at 250℃/5kg
Impact Strength	kJ/m²	5-14	Depending on carbon fiber content
Flexural Modulus	MPa	1700-4100	Indicates high stiffness
Certifications	——	ISO 9001:2008, SGS, CQC, UL	Ensures quality and compliance
Packaging	kg/bag	25 kg/bag	Standard packaging for easy handling
Storage Conditions	——	Dry, Cool Place	Avoid direct sunlight

Notes for International Buyers

Customization Options
- Surface resistivity and carbon fiber content can be adjusted based on specific requirements.
- Different base materials (PA6 or PA66) can be selected.
Quality Assurance
- Products comply with international standards and certifications (ISO, SGS, UL).
- Detailed mechanical and electrical properties are tested and verified.
Environmental Considerations
- Low water absorption and stable electrical performance ensure reliability in various climates.
- Products are environmentally friendly and comply with EU standards.
Technical Support
- Our technical team provides support for processing recommendations and application-specific solutions

PA Nylon Conductive Masterbatch Applications:

automotive field

Used to manufacture automobile brake systems, power systems, hydraulic systems and other parts.

electronic device

Suitable for electronic casings, antistatic trays, conductive connections, etc.

industrial equipment

Manufacturing wear-resistant parts such as gears, bearings, and pipe joints.

new energy field

Used in solar energy equipment, energy storage systems, etc.

other applications

Suitable for various application scenarios requiring electrical conduction, antistatic and electromagnetic shielding

PA Nylon Conductive Masterbatch Customization:

PA Nylon Plastic Pellets Conductive Masterbatch 10E5-0E9 Customized For Injection Molding 0

We provide customized services to meet the needs of different customers:

resistivity adjustment

Adjust the surface resistivity range based on the application scenario.

Substrate selection

Provide a variety of substrate options such as PA6 and PA66.

Special performance addition

Such as wear resistance, flame retardant, high temperature resistance and other functions

PA Nylon Conductive Masterbatch Customized Process

Our PA nylon conductive color masterbatches are professionally produced through an elaborate customization process, combining high-quality basic materials with a variety of advanced additives to meet specific industry needs. Here's how we customize our products to ensure optimal performance:

1. Basic material: PA nylon resin

We use high-quality PA nylon resin as the basic material and serve as the basis for our conductive masterbatch. This resin was chosen for its excellent mechanical properties, chemical resistance and thermal stability.

2. conductive additive

Carbon fiber: We use carbon fiber to provide excellent electrical conductivity., Enhance the mechanical properties of the final product.

Carbon black: For applications requiring electrical conductivity

3. reinforcing material

Glass fiber: In order to enhance the mechanical strength and hardness of nylon, we can add glass fiber.

Metal fiber: For applications requiring electromagnetic shielding, metal fiber is added to the mixture.

4. special additives

Carbon nanotubes: For advanced applications, we can include carbon nanotubes

Toughness improvers: In order to improve impact resistance, we added toughness improvers.

PA Nylon Conductive Masterbatch Support and Services:

professional advisory

Provide selection suggestions and technical consultation to help customers choose the most suitable product.

technical support

Equipped with a team of professional engineers to assist in solving technical problems in processing and application.

custom development

Develop customized products based on customer needs.

after-sales service

Provide product use training, quality tracking and after-sales guarantee

PA Nylon Conductive Masterbatch Packing and Shipping:

Product Packaging:

The Conductive Compounds product is packed securely in a plastic container with a tight-fitting lid to prevent any spillage or contamination during transportation.

Shipping:

The Conductive Compounds product is shipped via standard ground shipping. We take utmost care while packing the product to ensure its safe arrival at the destination. The delivery time may vary depending on the location, but we strive to deliver the product within the estimated timeframe.
